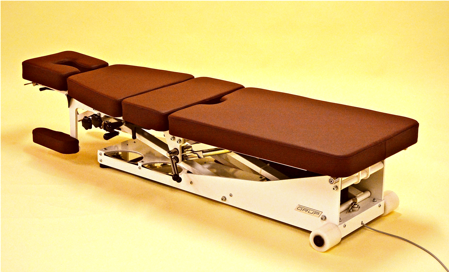

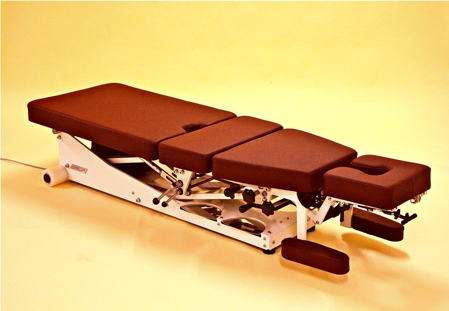

The same table as the MC – 50 but in an extra low version with a minimum
height of only 380 mm.
In its basic configuration the flexion piece can be set at the preferred angle by
raising or lowering the elevation height. (Description)
By adding the optional ‘‘Dynamic Flexion / Distraction’’ the flexion piece returns
to horizontal after being pressed down into flexion.
With many options available the table can be tailormade for a wide range of
- Elevation range: 380 mm – 780 mm
- Elevation speed: 40 mm/sec. Lowest to highest position takes 10 seconds.
- Total length: 1855 mm
- Max width: 550 mm
- Weight: 120 kg
- Upholstery: 7cm thick, with a firm layer first and a soft layer on top
The MC-50 can be delivered with the following optional equipment
Lumbo / Pelvic Drop
Foot operation Thoracic Drop
Foot operation Lumbo / Pelvic Drop
Dynamic Flexion / Distraction
Handle for Flexion / Distraction
Headpiece equiped for Paperroll
Elevation control in Headpiece
PVC Cover Type 1
( PVC on top, Vinyl on the sides )
PVC Cover Type 2
( Vinyl on top, PVC on the sides )
Minimum height 380 mm
Maximum height 780 mm
Elevation control on both sides of the table for easy access
Narrow frame with elevation controls mounted on frame gives easy access when standing close to the table.
