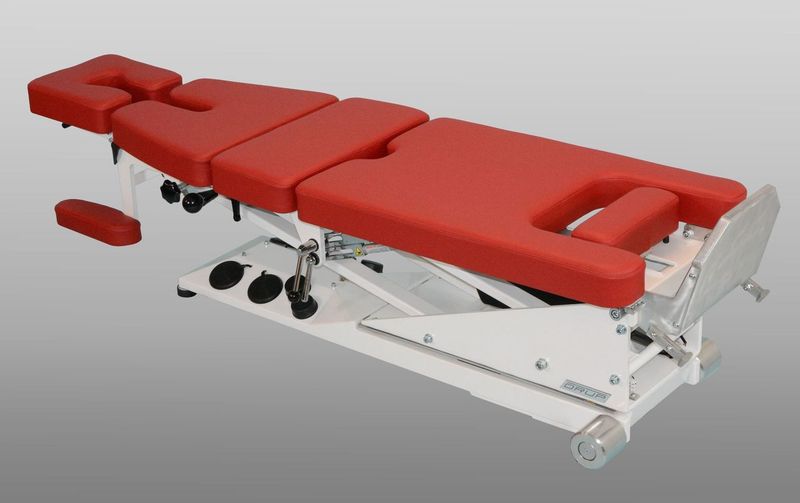

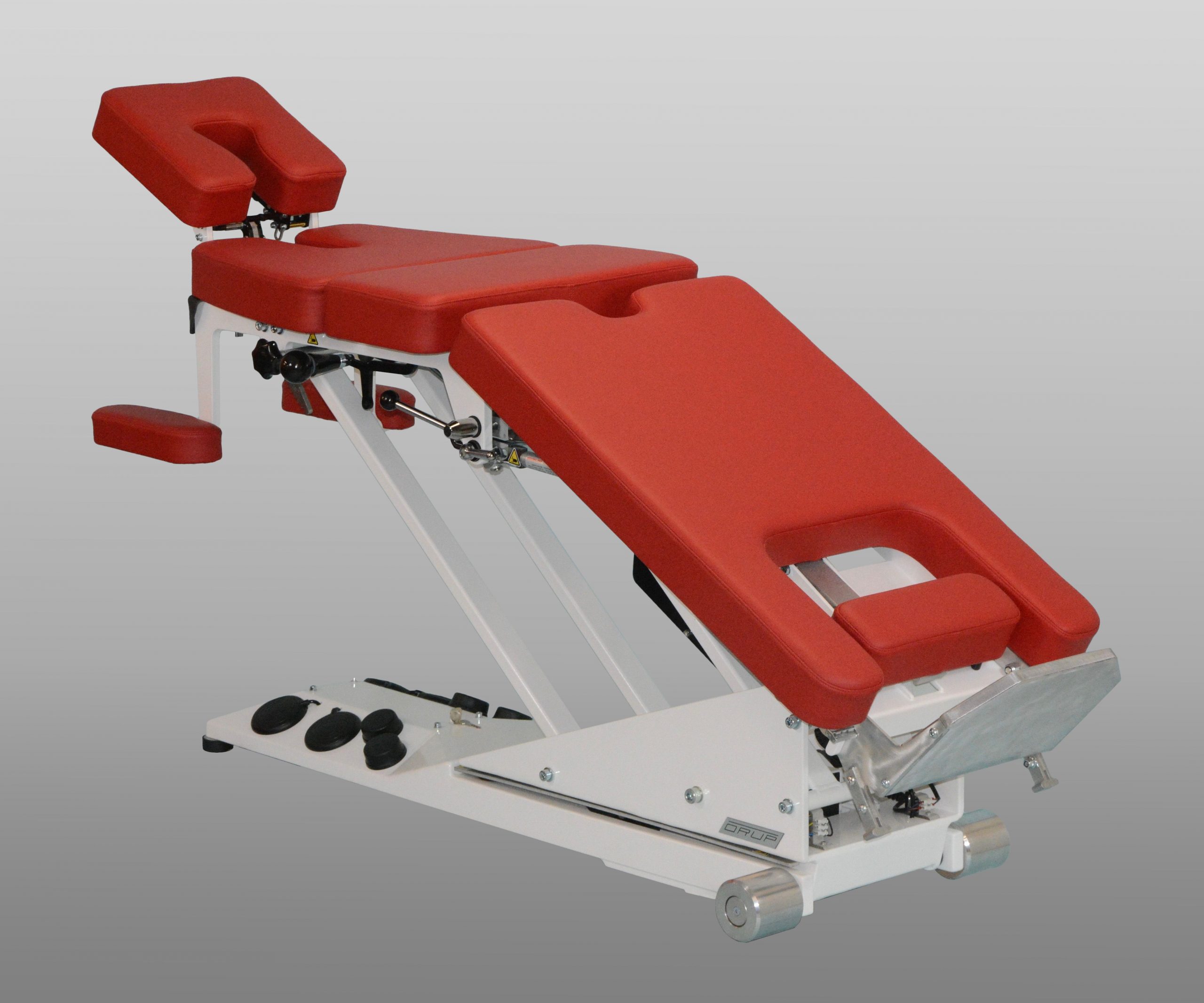

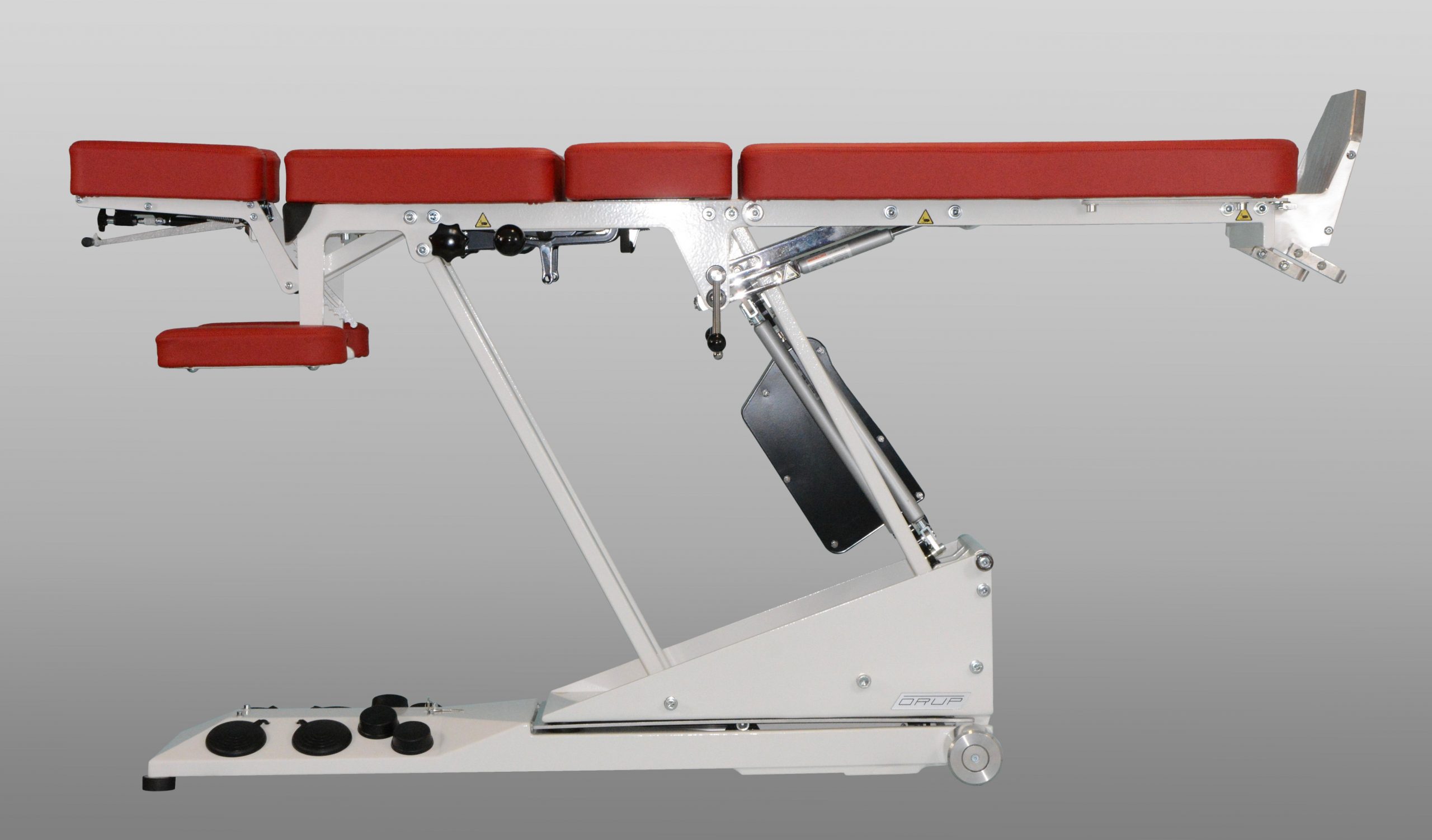

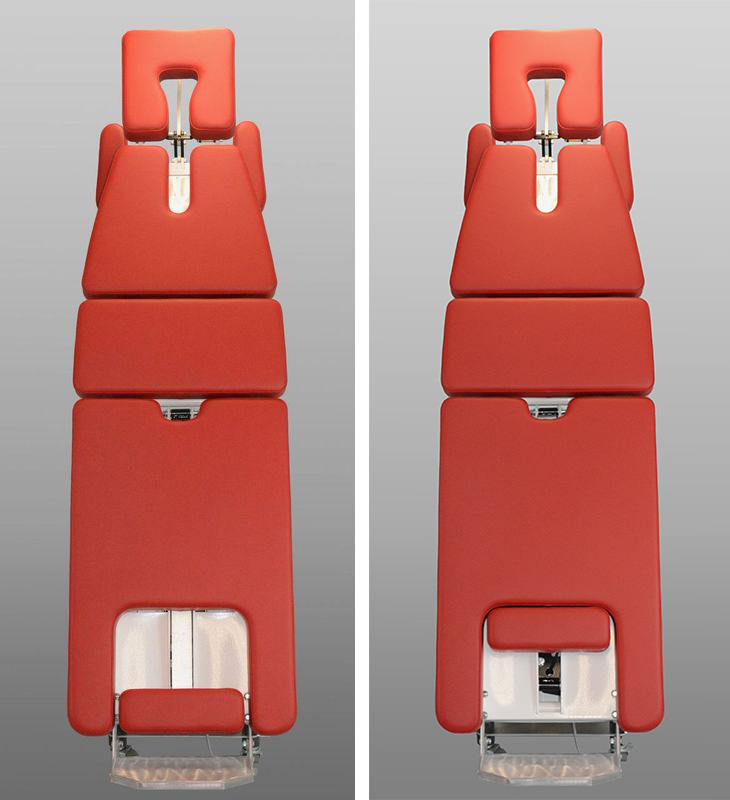

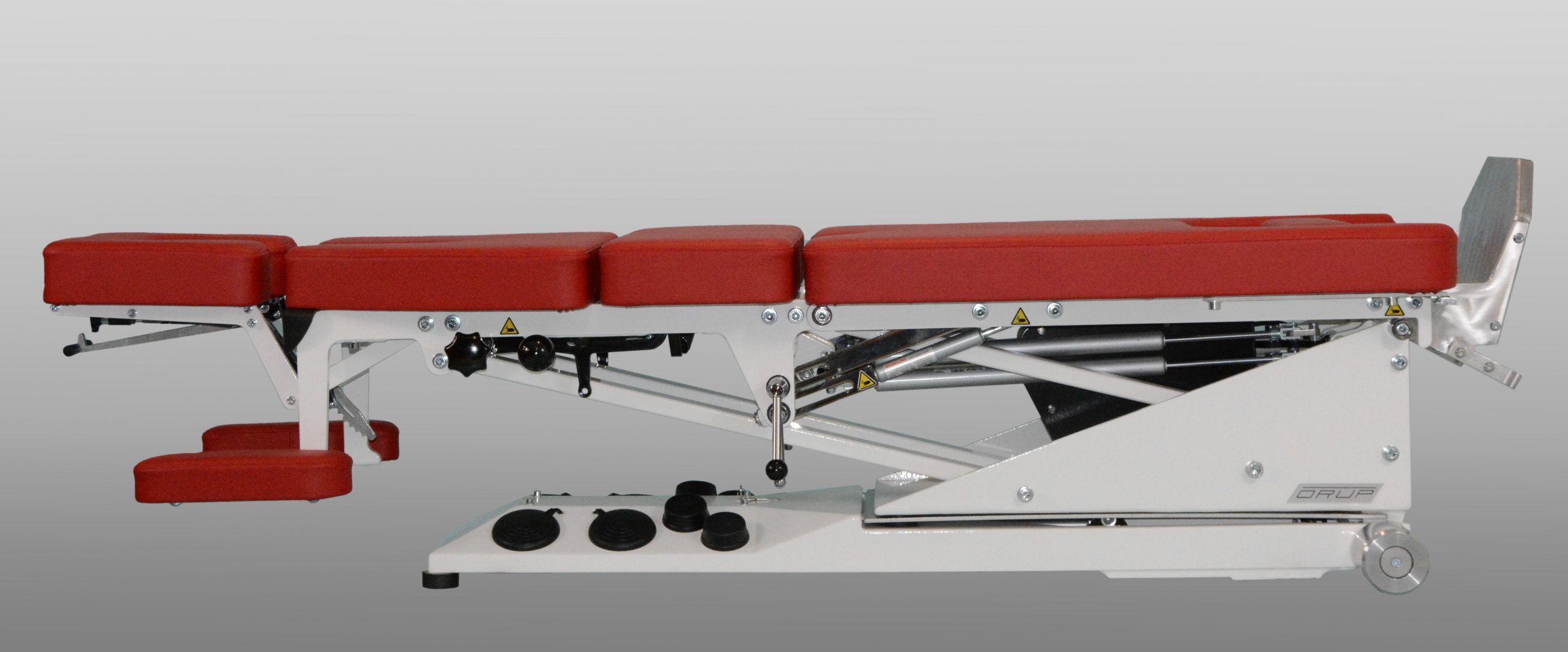

MC-60 Elevation, Hi-Lo, Flexion/Distraction table

The ultimate chiropractic table! The MC-60 Elevation & Hi-Lo table is unrivalled
in the chiropractic profession for style, comfort, performance and capability.
With 550 mm elevation range, extra fast elevation speed and a multitude of options available
the table can be tailormade for a wide range of chiropractic techniques.

In its basic configuration the flexion piece can be set at the preferred angle by
raising or lowering the elevation height. (Description)
By adding the optional ‘‘Dynamic Flexion / Distraction’’ the flexion piece returns
to horizontal after being pressed down into flexion.

  • Elevation range: 460 – 1000 mm.
  • Elevation speed: 60 mm / sec. Lowest to highest position takes 10 seconds.
  • Hi – Lo 15 seconds. Horizontal to vertical.
  • Total length: 1985 mm (including footplate).
  • Max width: 550 mm.
  • Weight: 195 – 210 kg.
  • Upholstery: 70 mm thick, with a firm layer first and a soft layer on top.
    Covers in vinyl fabric which can be cleaned with disinfectant up to 60%
    alcohol concentration

The MC-60 can be delivered with the following optional equipment

Cervical Drop
Thoracic Drop
Lumbo / Pelvic Drop
Foot operation Thoracic Drop
Foot operation Lumbo / Pelvic Drop.
Dynamic Flexion / Distraction
Ankle Straps
Leather Upholstery
Headpiece equiped for Paperroll
Elevation control in Headpiece
PVC Cover Type 1
( PVC on top, Vinyl on the sides )
PVC Cover Type 2
( Vinyl on top, PVC on the sides )

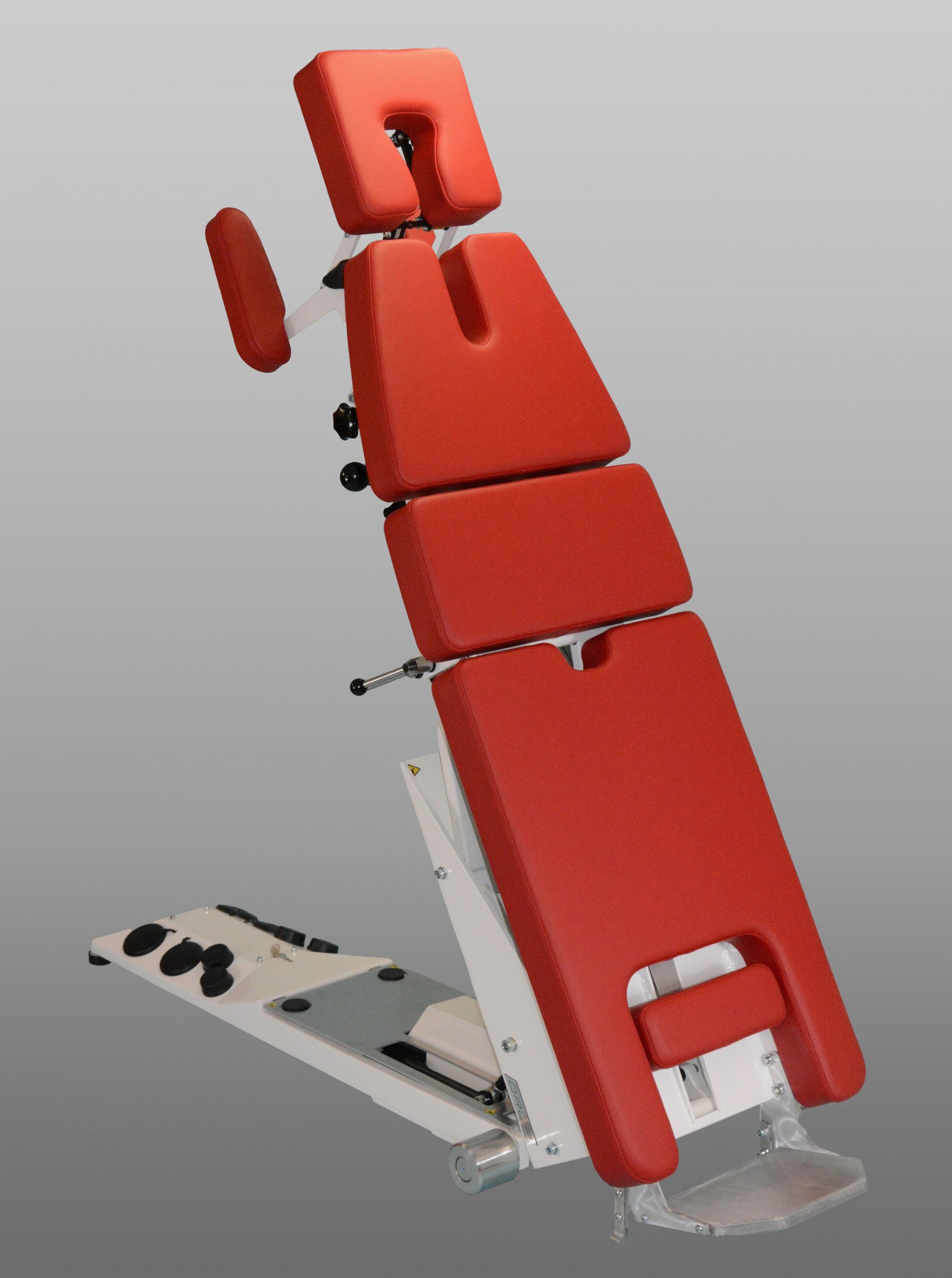

Hi-Lo function


Minimum height 460 mm

Maximum height 1000 mm

Footplate in brushed aluminium for smooth finish and durability

Adjustable foot rest

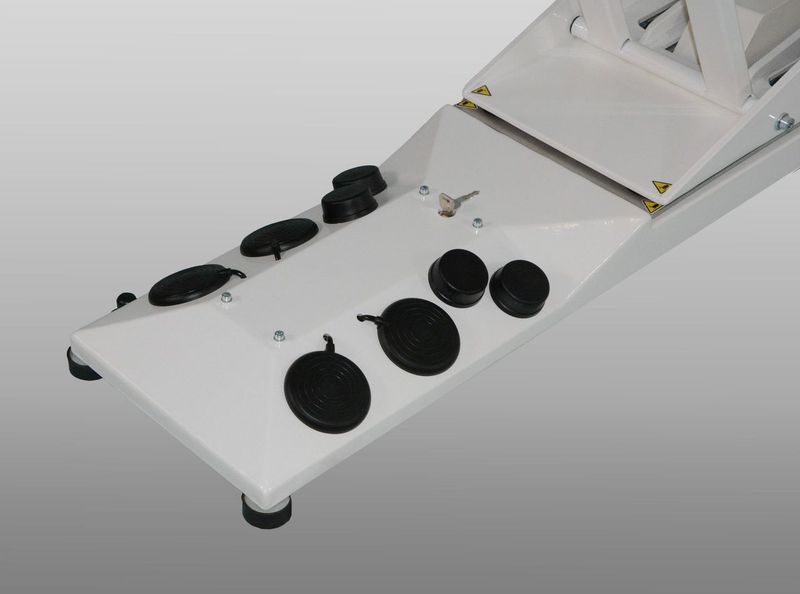

Footpedals for Elevation and Hi-Lo control are easy to reach
